Cleaner: Egret - Rotary Type pre-cleaner


Egret CleanerAspirated Egret

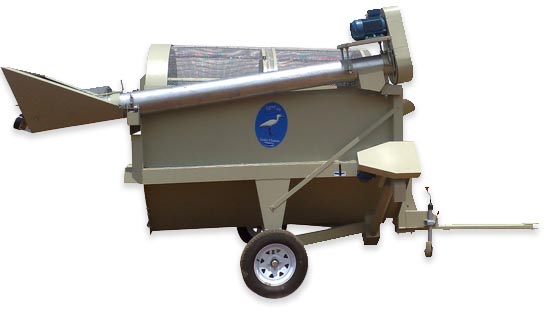

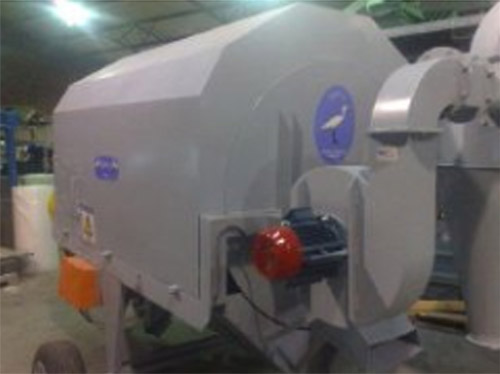

Mobile Egret 40 & Aspirated Egret 40 rotary cleaners

Capacity

Approximately 20 - 40 tons per hour, based on quality and type of seed, moisture, quantity of foreign matter etc.

Main drive motor 3kW
Aspirator motor 2.2 - 4 kW
Load auger motor 3KW
Rotary valve motor 0.75KW (aspirated models only)
Motor RPM – Rotation 1850RPM
Motor RPM - Aspirator 2800RPM
Load auger size 203mm x 4M
Trash unload auger size 100mm x 500mm
Discharge Oversized, undersized and light particles (aspirated models only)
All motors are 3 phase 380V Volt, 50 Hz unless otherwise indicated


Dimension & Mass (For mobile unit)
Length 3500mm
Width 2200mm
Height 2400mm
Mass 685kg


Screens
Number of screens 2 (Gross + Fine)
Screen type Wire mesh


Height of inlet, waste and cleaned product at exit
Inlet 1790mm
Waste outlet 1200mm
Clean outlet 820mm

Spare parts & Consumables



Technical specifications may be altered without notice. All capacities shown are indicative only
