Datasheet:Expeller

Model: SGC300 or Version ABC300

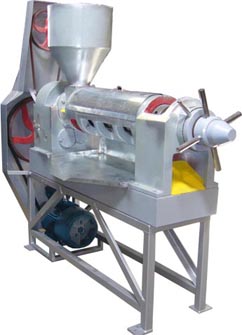

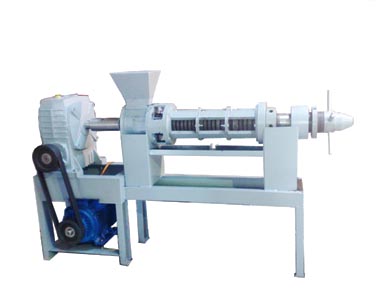

                                                                         ABC300                                                            SGC300

Capacity

Sunflower

280 - 320 kg/hr

Groundnuts

120 - 180 kg/hr

*Capacity is dependent on quality and type of seed, moisture, whether de-hulled or not, whether ground, conditioned etc.


Pressing mechanism

Segmented screw, bars and rings.
Main motor 15 - 18.5 kW
Motor RPM 4 pole 1460 RPM
Gearbox

INTERNAL 25:1on SGC300 -EXTERNAL ON ABC300

Hopper size Approx. 80 lt.
Feed adjustment Inverter from load auger
Cutter Cutter Blades Standard Included
Temperature during expelling ±60C (Inside Barrel)
±60 - 80C (Product)
All motors are 3 phase 380V Volt, 50 Hz unless otherwise indicated

Dimension & Mass

Length SGC1600mm - ABC300 2140
Width Body: 1100mm

Height Top of hopper: SGC300: 2250mm, ABC300 1650
Center of screw: 1150
Mass 1,100kg
Height of oil and cake at exit ±950mm

Spare parts & Consumables

Screw segments
Pressing rings and bars
Bearings
