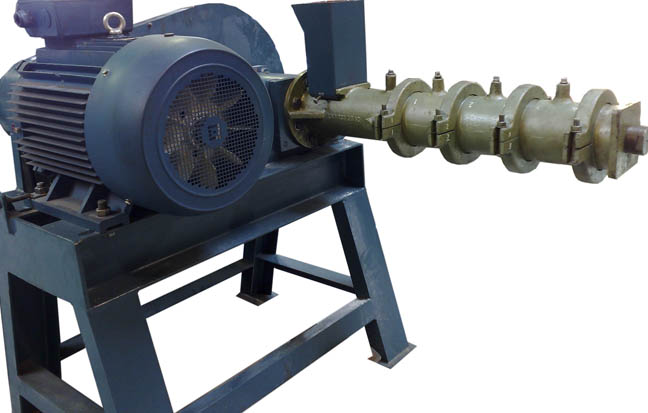

Datasheet:Extruder

Model: ABC 600

Capacity

Full fat soya

500* – 600** kg/hr

Dogfood

600*– 800** kg/hr

Maize or sorghum

400* – 600** kg/hr

Fishfood 300*– 500** kg/hr

Corn/Soy Blend

500 – 600kg/hr

*Capacity is dependent on formulation, size of motor, application of steam.



Main motor

55* – 75** kW

Motor RPM

1460RPM

Volumetric feed motor

0.75kW

Feed adjustment Variable speed gearbox / Inverter
Outboard cutter and motor (Optional) 1.5kW
Barrel overhang ±600mm
Height of product at exit ±560mm
Hopper size 50kg
Extrusion temperature (soya)

±1400C Barrel

±1150C Product

Compression head

Middle chambers
600mm and 300mm chambers

All motors are 3 phase 380V Volt, 50 Hz unless otherwise indicated

Spare parts & Consumables

Screw flights
Choke plates
Wear sleeves
Nose cone
Chambers


Dimensions

Width 1200mm
Length 1600mm
Height 1700mm
Mass 1,100kg.

The average cost per ton for wear parts is approximately US$1 – 2.
