MHM - Hippo Mammoth Hammer mill

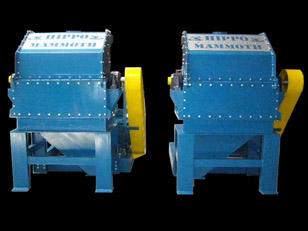

Hippo Mammoth

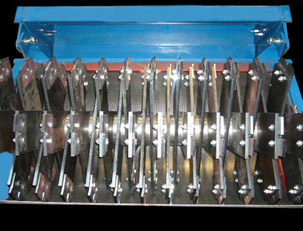

Hippo Mammoth Rotor

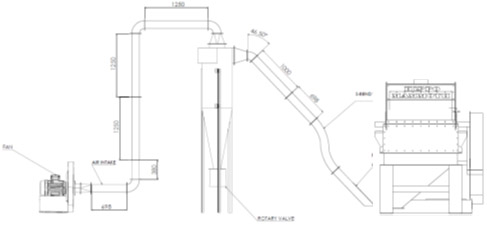

Hippo Mammoth with air extraction system

Description

As the largest mill in the Hippo Hammer mill range, the Mammoth is used in commercial and industrial applications. Staying true to the Hippo philosophy of bolt together hammer mills, the mill is a true Hippo, with the lifespan and reliability that customers world wide have come to know and expect.

Applications include - maize milling, bran milling, soy derivative milling, waste wood milling, milling of invader trees into feed, animal feed milling, starch processing, sorghum milling, medical hardware waste destruction, bonemeal processing, tabacco processing. Virtually any relatively dry product can be milled/granulised.

Power requirements range between 75KW and 110KW - depending on application and screen sizes range between 0.6mm and 25mm

In standard application the mill is fitted with a boot, to fit a screw or belt conveyor unload, but air extraction is also supplied as an optional item, especially on applications where products are milled with a screen finer than 2mm, to increase capacity, and reduce heat buildup due to the milling process.

Specifications

Mass 750
Beater centres 36
Tips 72/144
Rotor RPM 2,100
Total length 2,085
Total width 1,710
Total height 2,120
Feed tray length (mm) 770
Feed tray width (mm) 1,200
Screen area (cm²) 7,908
Capacity
(through 1.6mm screen - Clean maize)
5,000kg/hr*
Construction material Mild Steel / Stainless Steel / Bennox Steel
Power requirement 75KW/90KW/110KW*
Consumables: Tip/Beater Centre/V-Belt
* - dependant on application
Hippo Mammoth with air extraction system
Hippo Mammoth with air extraction system


Technical specifications may be altered without notice. All capacities shown are indicative only
