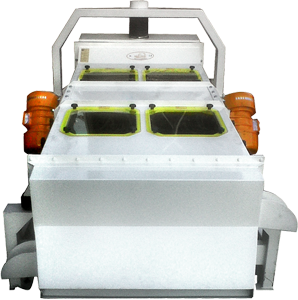

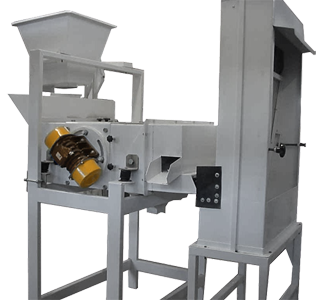

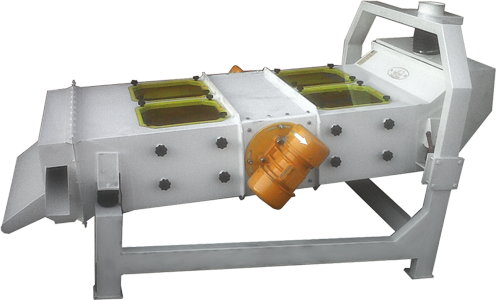

Cleaner: Francolin - Vibration Type
Capacity
Approximately 2500 - 10000 kg per hour based on quality and type of
seed, moisture, quantity of foreign matter etc.
| Main vibration motors (2)
|
0.75kW
|
| Aspirator motor
|
2.2 - 4 kW
|
| Motor RPM – Vibration
|
2840RPM
|
| Motor RPM - Aspirator
|
2840RPM
|
| Hopper size
|
±50kg Wheat
|
| Feed adjustment
|
Manual
|
| Discharge
|
Over, Under, selected sizesLower mass
|
All motors are 3 phase 380V Volt, 50 Hz unless otherwise indicated
| Dimension & Mass (For 2,500kg/hr wheat)
|
| Length
|
1702mm
|
| Width
|
1510mm
|
| Height
|
2000mm
|
| Mass
|
489kg
|
| Size of steel screens
|
| Length
|
920mm
|
| Width
|
900mm
|
| Number of screens
|
2
|
| Height of inlet, waste and cleaned product at exit
|
| Inlet
|
1790mm
|
| Waste 1
|
1200mm
|
| Waste 2
|
659mm
|
| Technical Data
|
| Model |
Required Air m3/min |
Sifter Sizes (cm) |
Capacity (t/h) |
Weight (kg) |
|
Bucket |
Cleaning |
Width (cm) |
Length (cm) |
Bucket |
Cleaning |
Net |
Gross |
| MSG 100x150 |
70 |
50 |
100 |
2x75 |
15 |
8 |
540 |
740 |
| MSG 100x200 |
90 |
50 |
100 |
2x100 |
25 |
15 |
550 |
800 |
| MSG 150x200 |
130 |
80 |
150 |
2x100 |
80 |
20 |
1250 |
1400 |
Spare parts & Consumables
- Screens
- Agitators
- Dust filter bags
