Description

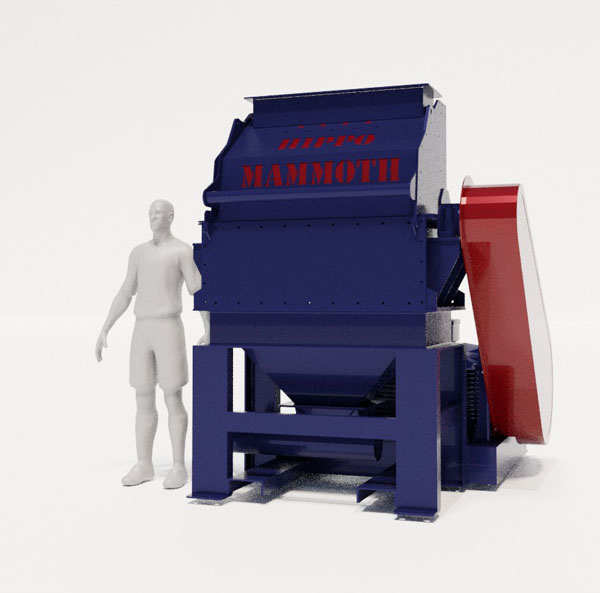

As the largest mill in the Hippo Hammer mill range, the Mammoth is used in commercial and industrial applications.
Staying true to the Hippo philosophy of bolt together hammer mills, the mill is a true Hippo, with the lifespan and reliability that customers world wide have come to know and expect.
Applications include – maize milling, bran milling, soy derivative milling, waste wood milling, milling of invader trees into feed, animal feed milling, starch processing, sorghum milling, medical hardware waste destruction, bonemeal processing, tobacco processing.
Virtually any relatively dry product can be milled/granulated.
Power requirements is at 75KW standard- but can be increased up to 90KW or decreased to 55KW depending on application.
Screen hole sizes range between 0.6mm and 25mm hole size.
In standard application the mill is fitted with a boot, to fit a screw or belt conveyor unload, but air extraction is also supplied as an optional item, especially on applications where products are milled with a screen finer than 2mm, to increase capacity and reduce heat buildup due to the milling process
Capacities at a glance:
| Screen hole | Capacity (kg/hr) |
| 0.8mm | 2,500 |
| 1.6mm | 5 000 |
| 4mm | 8 500 |
| 8mm | 13 000 |
Rotor RPM: 2 320
Inlet size: 265mm x 965mm
Screen area: 10 112cm²
Tip speed at standard RPM: 65m/second
For a technical datasheet on the Hippo Mammoth click here: MHM – Hippo Mammoth
