Description

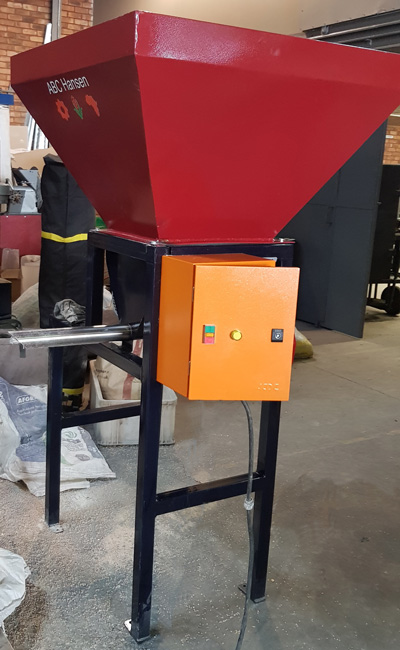

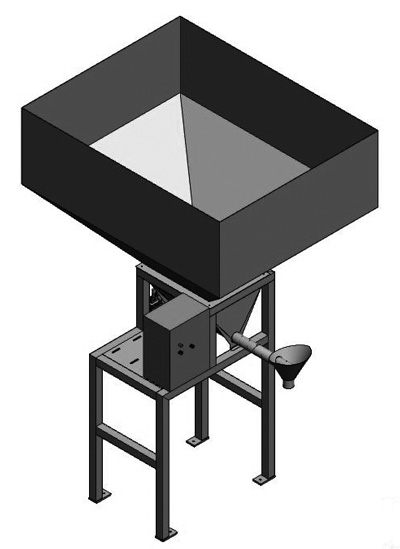

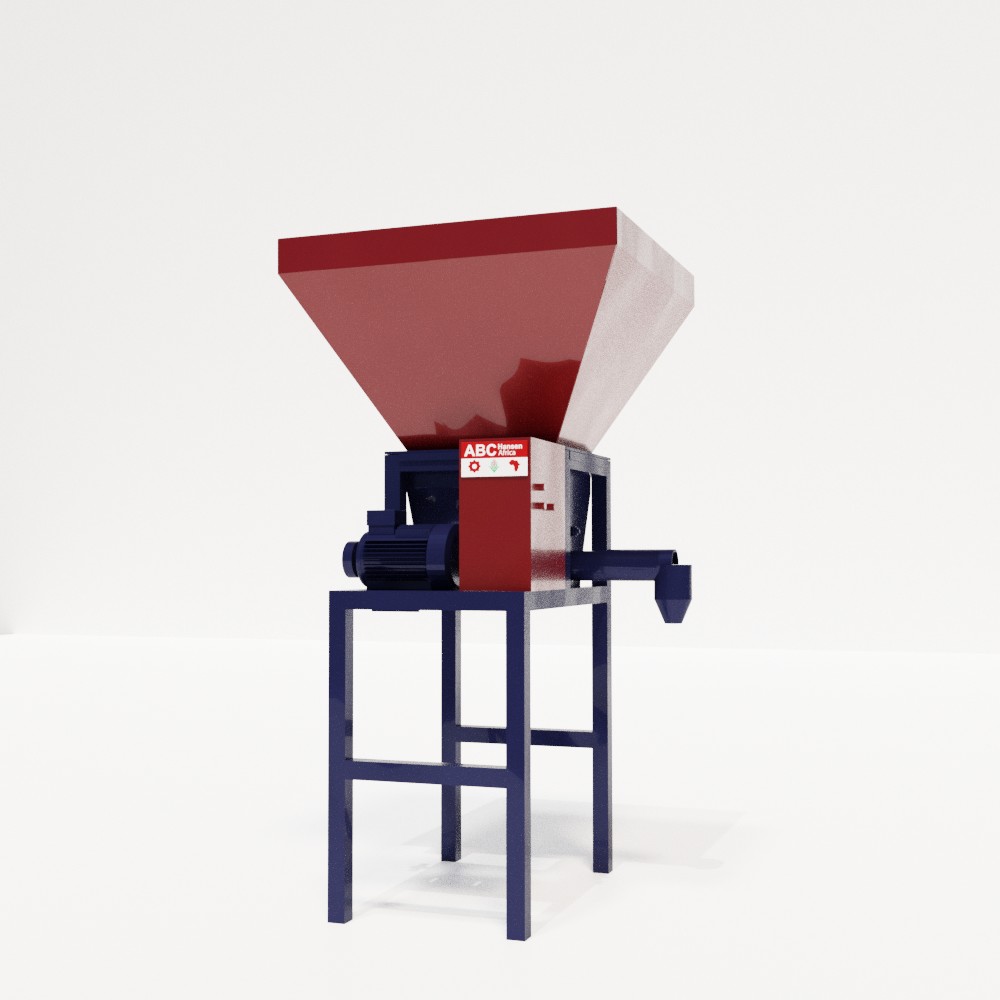

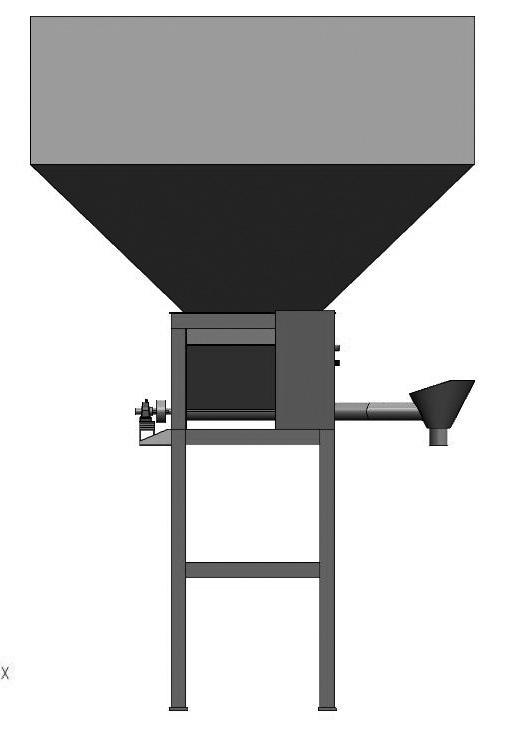

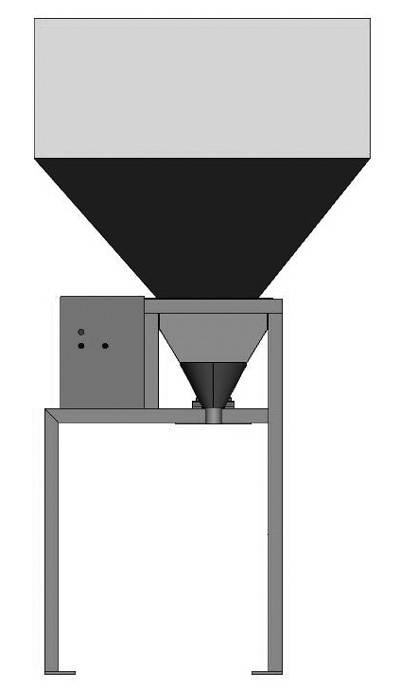

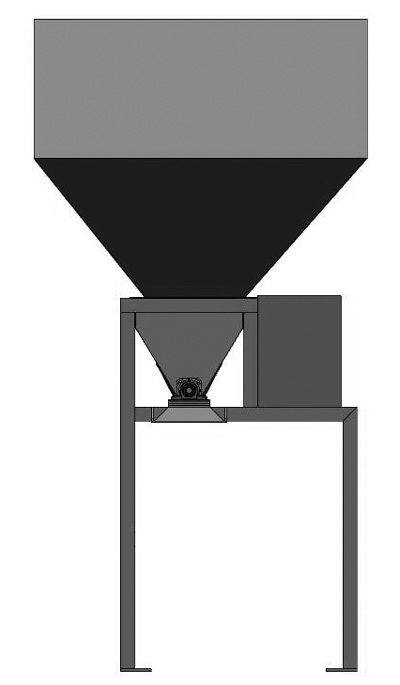

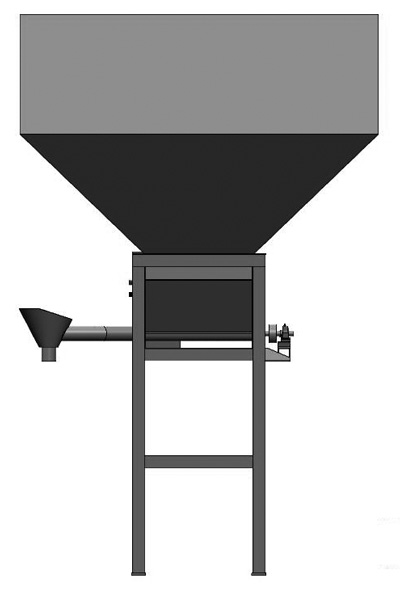

Horizontal auger fillers, also sometimes known as valve packers are mainly used for packing powdered and granular products.
The material is usually discharged into the main hopper with a separate conveyor – and the level in the hopper is controlled with a low level sensor, to maintain the level in the hopper, resulting in accurate packing.
Horizontal auger fillers or valve packers were originally designed for filling bags with valves for filling – due to the low amount of air that they transport with the product when filling the bags, but they are used for packing in normal bags as well – due to their versatility.
The auger filler’s output weight is determined in two ways
a) The timing of the rotation. Timing can be set at 5/10/15 seconds per fill
b) The speed of rotation of the auger – which can be set from 145RPM to 1450RPM
The screw is chain driven, ensuring no slippage of the drive – ensuring repeatable, accurate packaging.
The feeding hopper has a high capacity of 1.3m³ – enabling constant head pressure – and at the same time leaving some buffer space for the production process before it.

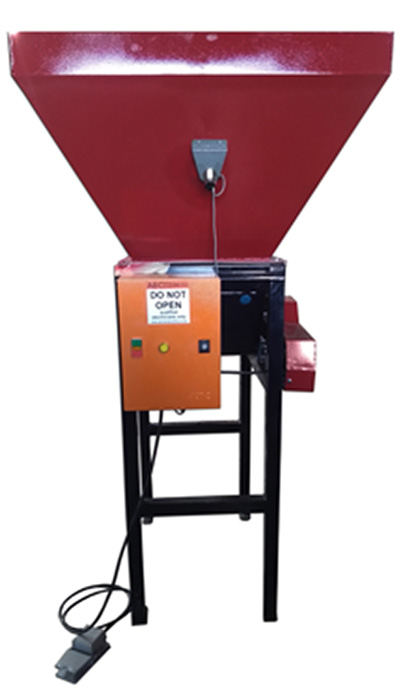

Discharge is controlled with a foot switch – with each switch contact resulting in one discharge.
Features:
– Pack sizes – 2kg up to 20kg per instance
– Easy operation and setting
– Accurate and repeatable results
– Low level switch inhibiting packing when level in hopper is too low – with manual override
– Little air is added to the product during fill
– Low bag breakage – as bag isn’t filled under positive pressure
– Versatile – will handle most free flowing products. For products with a tendency to bridge – such as fine powders – an optional agitation/vibration device can be fitted
– Suitable for meals, flours, cement, tile adhesives, plastic pellets and polymers, salt(in stainless steel)
– No suitable for liquid or paste type products
– Stainless steel contact part available as optional
– Usually not suitable for pelleted feeds, breakage sensitive products – as the product is conveyed with an auger – which may cause mechanical damage to the product being packed
– Foot switch control
Specifications:
– 55mmØ spiral mounted on 20mmØ round tube
– Chain drive 1:1 ratio
– 2.2KW drive – 380V/50HZ
– Adjustable timing of each instance
– Adjustable speed of rotation for each instance
– High capacity hopper (1300liter)
