Description

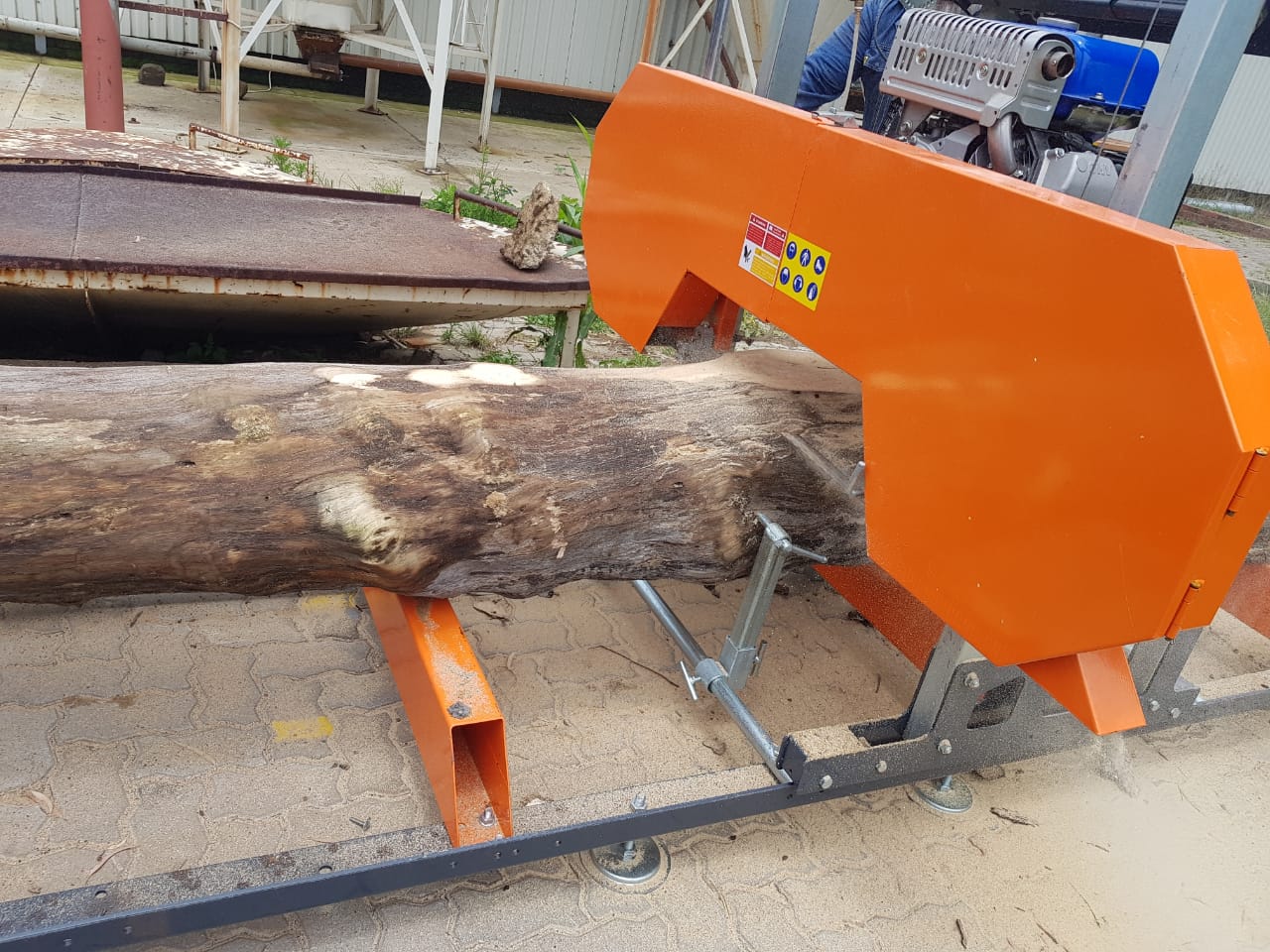

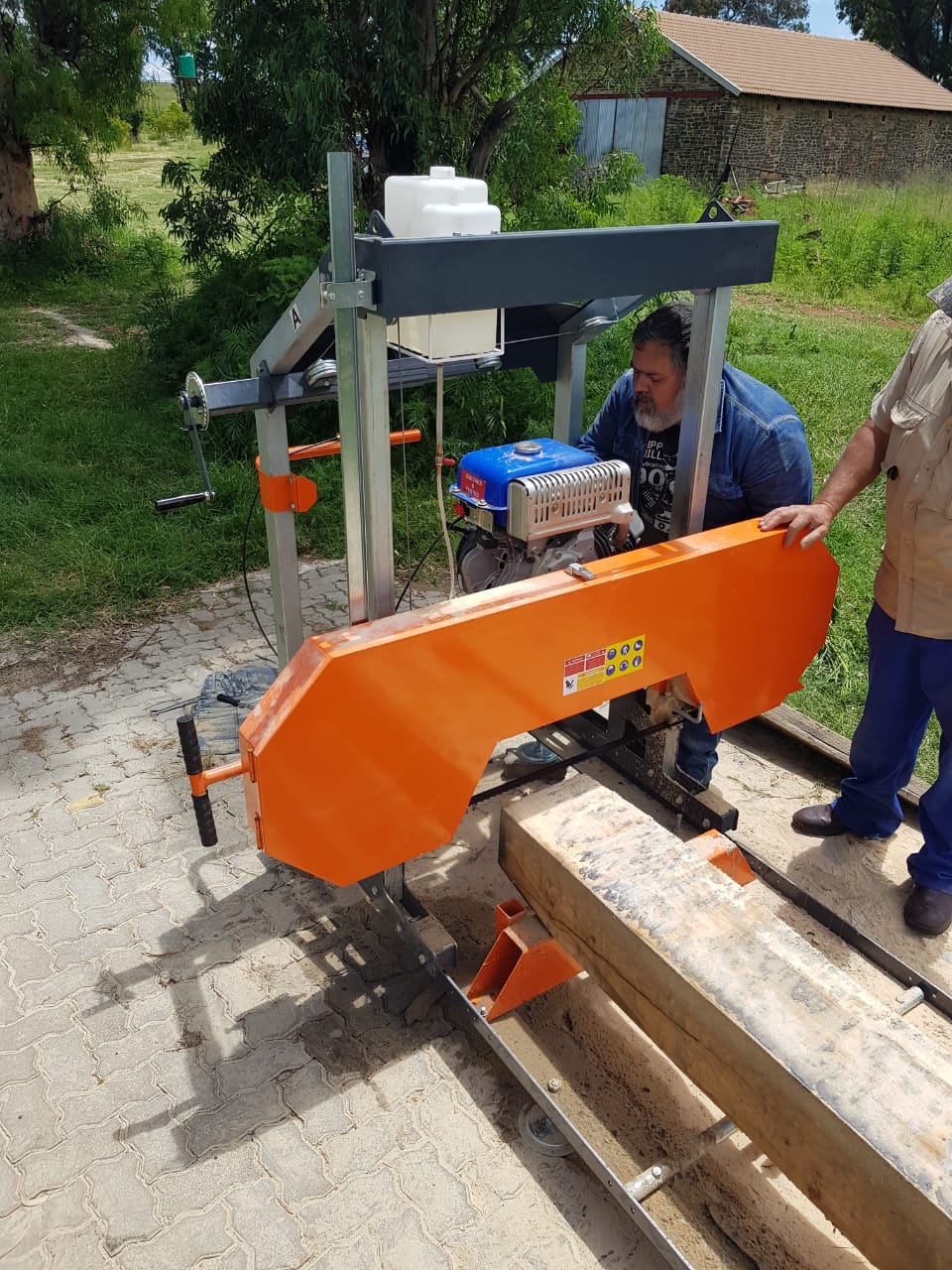

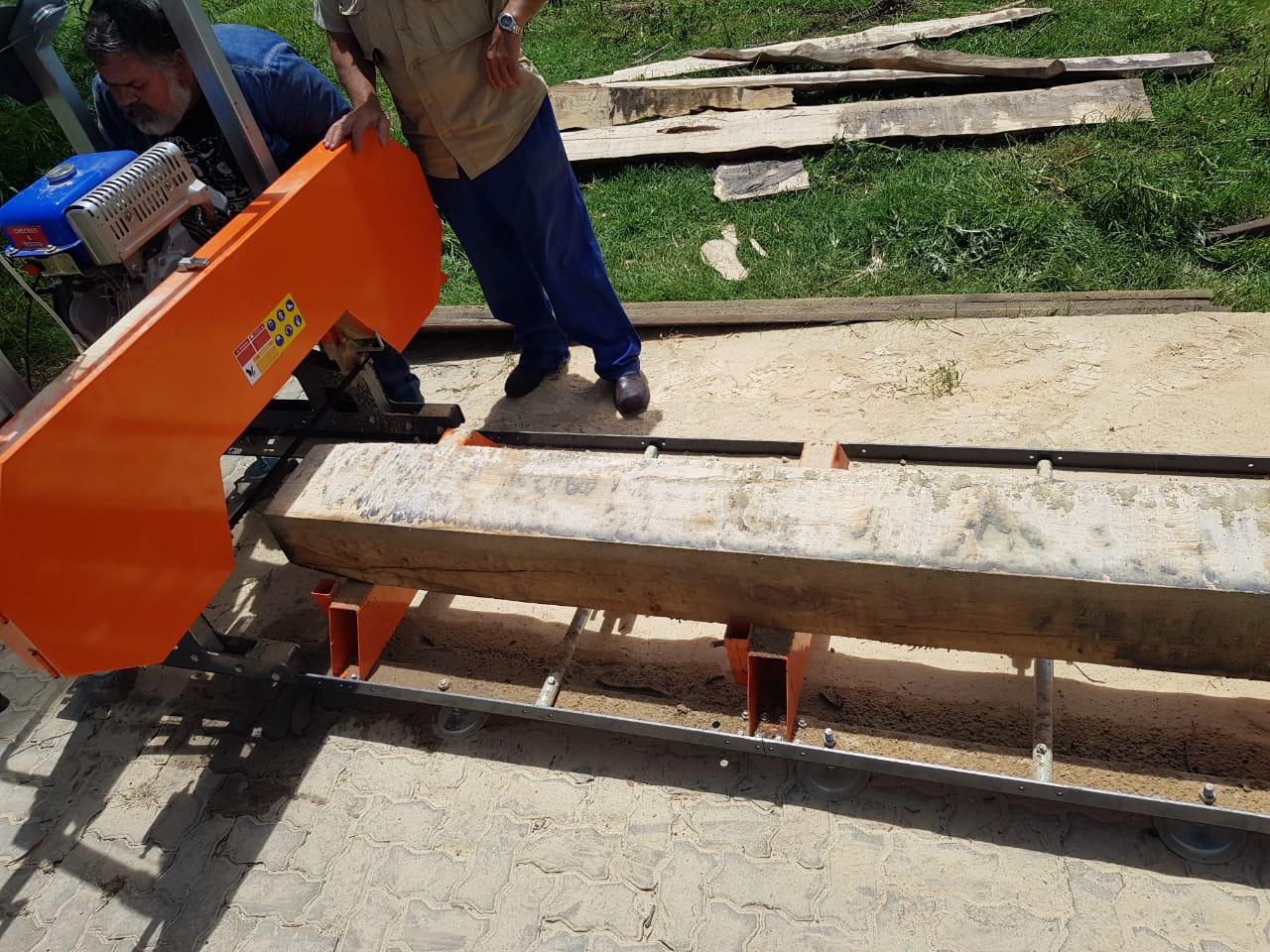

Band saw for cutting logs into planks and timber, with petrol engine drive
This bandsaw was designed for all levels of sawyers, from professionals to users just starting out, looking for a large log capacity.
Driven by a 12HP petrol engine, this band saw has a capacity of logs with a diameter of up to Ø800mm and any length (log table extensions are available in 1.8m sections)
The cutting section, is adjusted using a cable pulley system, and has a clear cutting height indicator, on a marked measurement marker, that is marked in both metric and imperial sizes.
Lubrication on the blade is done by a drip hose, that continuously drips water onto the blade before it cuts into the log. This prevents the natural saps from wet trees from gumming up the blade, and causing work stoppages, and lubricates the blade through the cut.
Specifications
- Standard – 3.6m track length – but additional log table extensions can be purchase to increase the length
- Painted and galvanized finishing
- Manual throttle adjustment with hand lever on side of mill, for temporary increases in power
- 12HP Petrol motor – as standard
- Up to Ø750mm log sizes
- Blade guide, with adjustment screws for improved stability, especially during fine cuts.
- Log clamps on the log table for log stability during cutting
- Machined iron wheels, running on steel tracks, for stable and straight blade movement.
- 10 liter water tank for blade lubrication
- Pulley system with wire rope/cable for accurate and easy adjustment of cut height
