Description

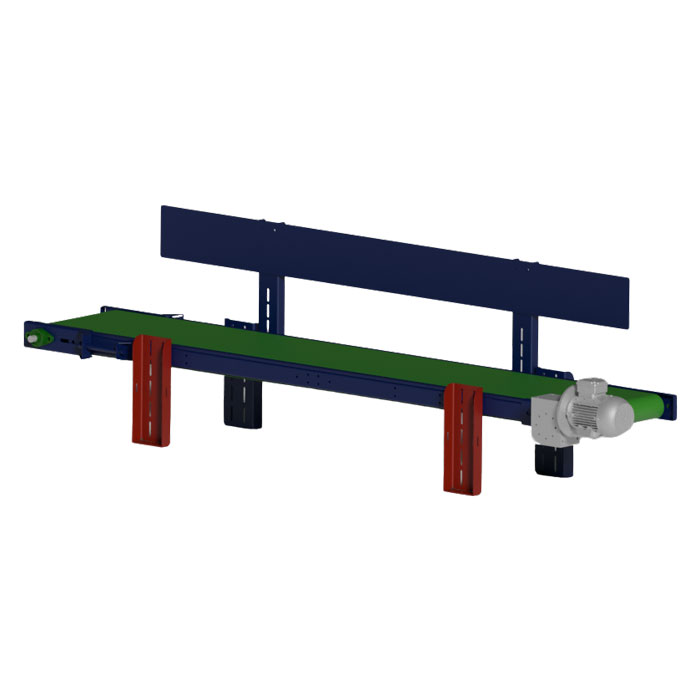

Belt conveyor with adjustable legs for conveying of bags horizontally

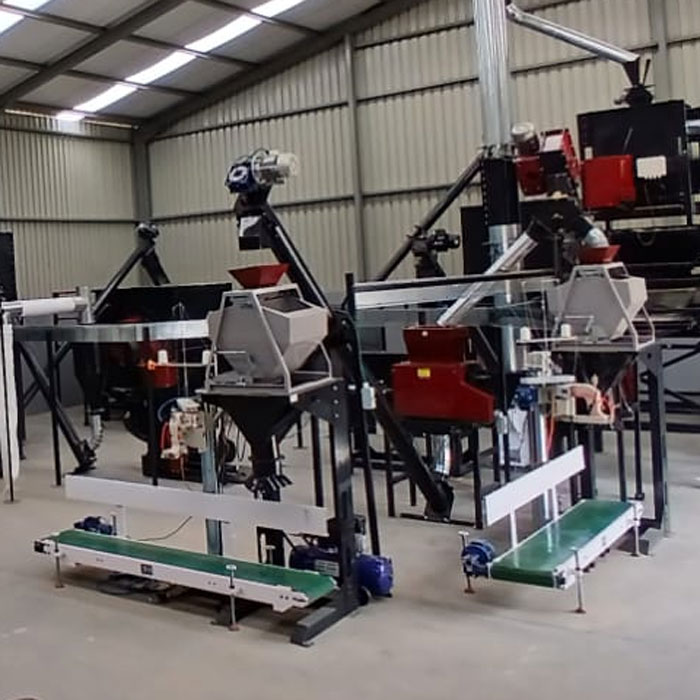

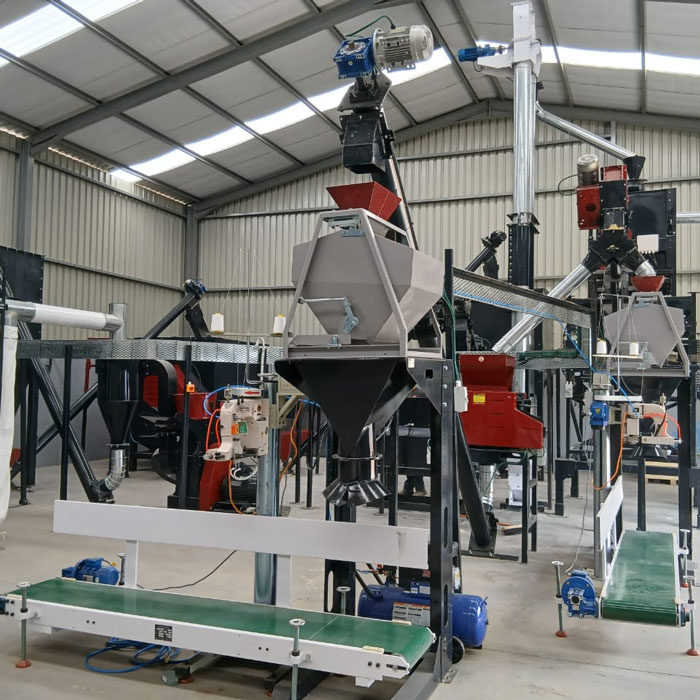

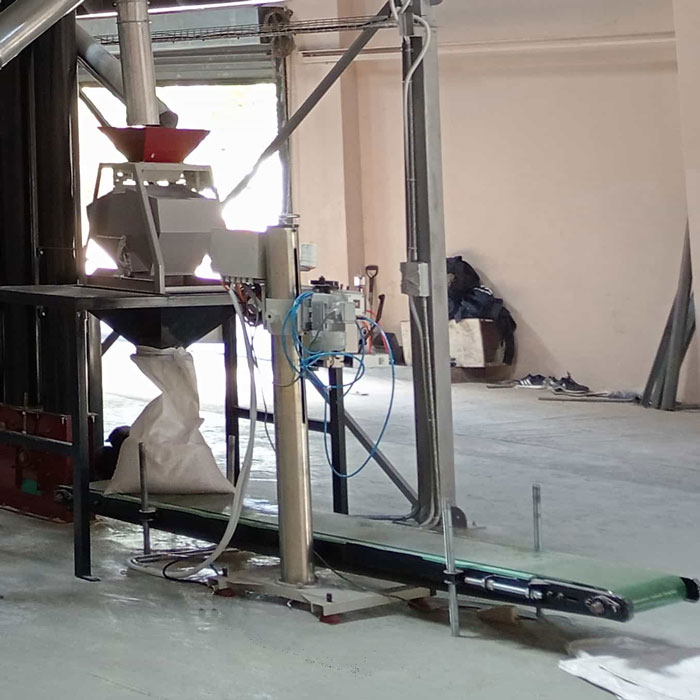

Ideal for installation with fixed head bag stitchers, or for automated bag conveyance in process
- Belt width: 400mm
- Belt type: PVC Three ply
- Max belt speed: 7.3m/minute
- Max adjustable height: 430mm
- Min adjustable height: 75mm
- Adjustable bag support plate (one side only)
- Operating angle: 0º-10º
- Standard conveyor length: 2.8m (other sizes available on special request)
- 0.55KW geared drive – direct couple
- UCF type bearings
- Mild steel construction – painted finish
This unit is for the belt conveyor alone – excluding the bag stitching head
