Fixed Head Pedestal Bag Stitcher

R83,244.00 Incl. Vat

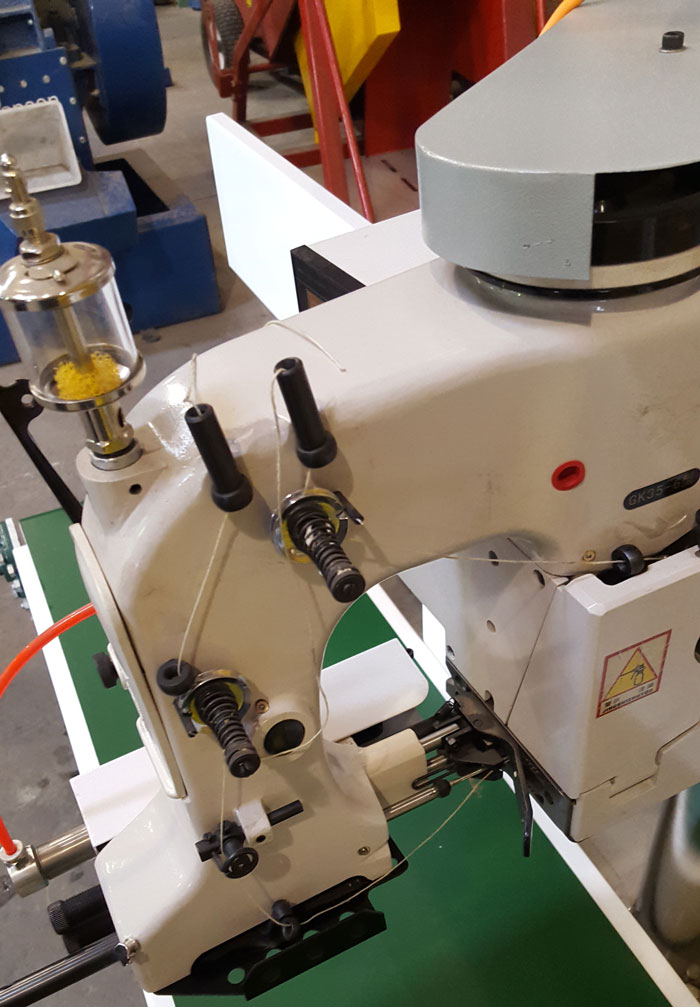

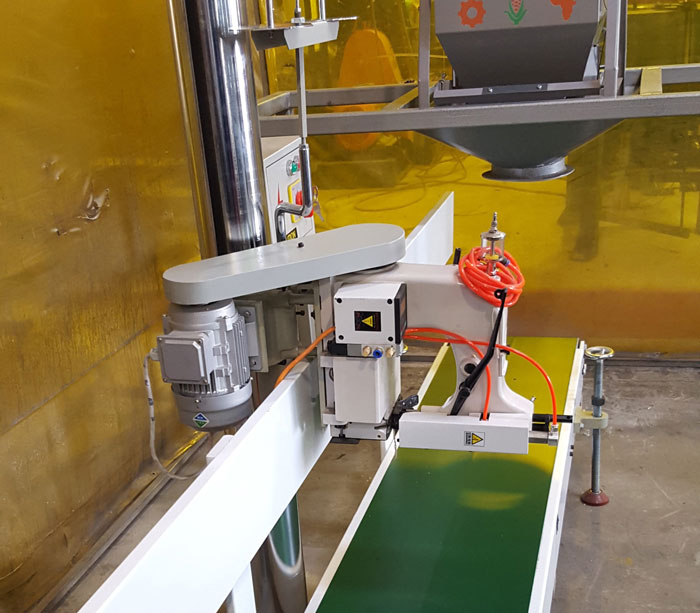

Fixed head pedestal bag stitcher

Includes 3m belt conveyor

Collins Model GK35

Stich formation: Chain stitch

Max sewing speed: 2000RPM

Max sewing thickness: 11mm

Application: Bag closing for agriculture, chemical, charcoal, coal, retail packaging

Mechanical configuration: Flat-Bed

Stitch length: 6.5mm x 11mm

Power: 380V 3 phase

Feed mechanism: Drop feed

Foot switch travel: 16mm

Thread chain cutter: Mechanical

Needle type: UY9848G / UY9856T

Stitcher weight: 30kg

Belt conveyor weight: 39kg

Total weight: 69kg

Shipping dimensions: 3m x 40cm x 60cm

Additional information

Weight 180 kg
Dimensions 300 × 65 × 65 cm
