Wood Chipper – Grizzly 160 PTO

R166,799.05 Incl. Vat

Call or email to confirm the lead time for this item. 012 803 0036 / info@abchansenafrica.co.za

SKU: SCAN250-1 Category:

Description

The Grizzly 160 PTO version is a go anywhere, do anything type of chipper – with an hydraulic infeed system – to be mounted onto tractors in the 45-85HP range.

The Grizzly 160 PTO wood chipper is the ideal machine for taking care of your clippings, prunings and all round waste wood – reducing volume for transportation, or hastening of decomposition for composting.

With an impressive capacity of logs up to 160mm in diameter – this chipper tcks all the boxes when it comes to
Safety
Convenience of operation and
Ease of maintenance,

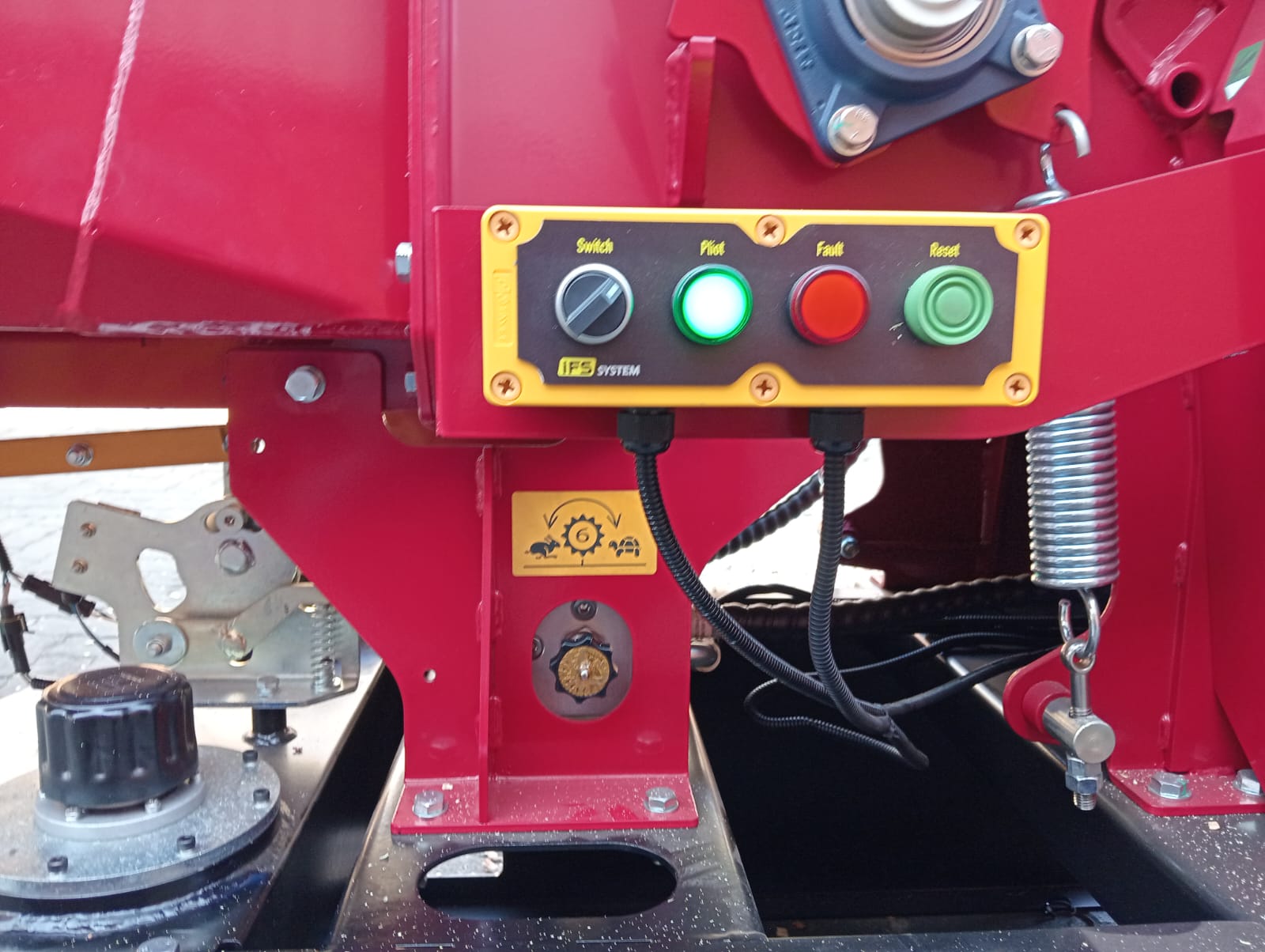

With an automatic infeed control, double emergency stops, a safety bar for stopping infeed in case of accidents and an independant hydraulic pump, that runs off of the main shaft, as well as adjustable infeed speed – allowing you to reduce the infeed speed when chipping larger logs, or when you want to created finer chips. The automatic infeed control stops the wood from being fed into the chipper as soon as it detects the drum speed dropping below a preset level, allowing the tractor to pick up speed again, preventing tractor stalling due to over feeding – protecting both the tractor and the chipper from unneccesary strain. Get yours from ABC Hansen Africa today and get your Grizzly into the woods.

FEEDING SYSTEM HYDRAULIC FEED -SELF CONTAINED SINGLE ROLLER
DRIVE SYSTEM DIRECT DRIVE, PTO W/ SHEARBOLT
HP REQUIREMENTS FOR MAX. CAP. 65
HP RANGE 45-150
CHIPPER CAPACITY 160Ø
CHIPPER HOPPER WIDTH 1240MM
CHIPPER THROAT OPENING 450MMX370MM
NUMBER OF ROTOR KNIVES 2 REVERSIBLE BLADES
KNIFE TYPE HARDENED TOOL STEEL
MOUNTING SYSTEM 3 POINT HITCH CLASS II
DIMENSIONS (HOPPER FOLDED) 2370MMX1400MMX2000MM
CHIPPING SYSTEM DRUM TYPE
DISCHARGE HOOD ROTATION 360º
DISCHARGE HOOD HEIGHT 2200MM
RATED RPM 540RPM
WEIGHT 965kg

Additional information

Weight 1150 kg
Dimensions 200 × 150 × 350 cm
