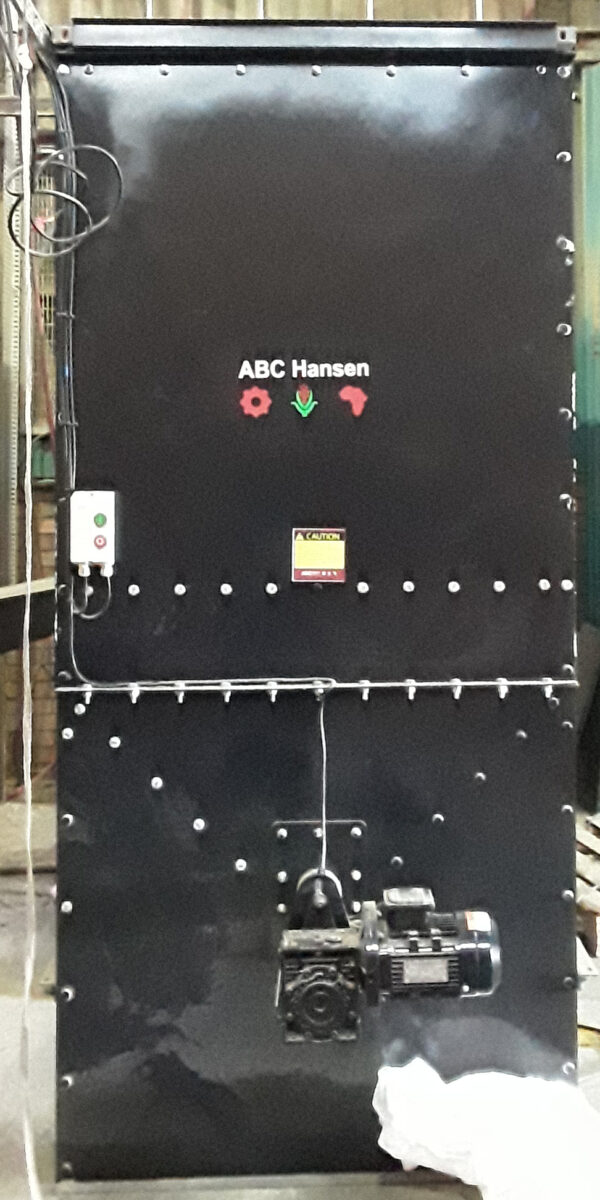

Dust manifold – 32 bag enclosed

Call or email to confirm the lead time for this item. 012 803 0036 / info@abchansenafrica.co.za

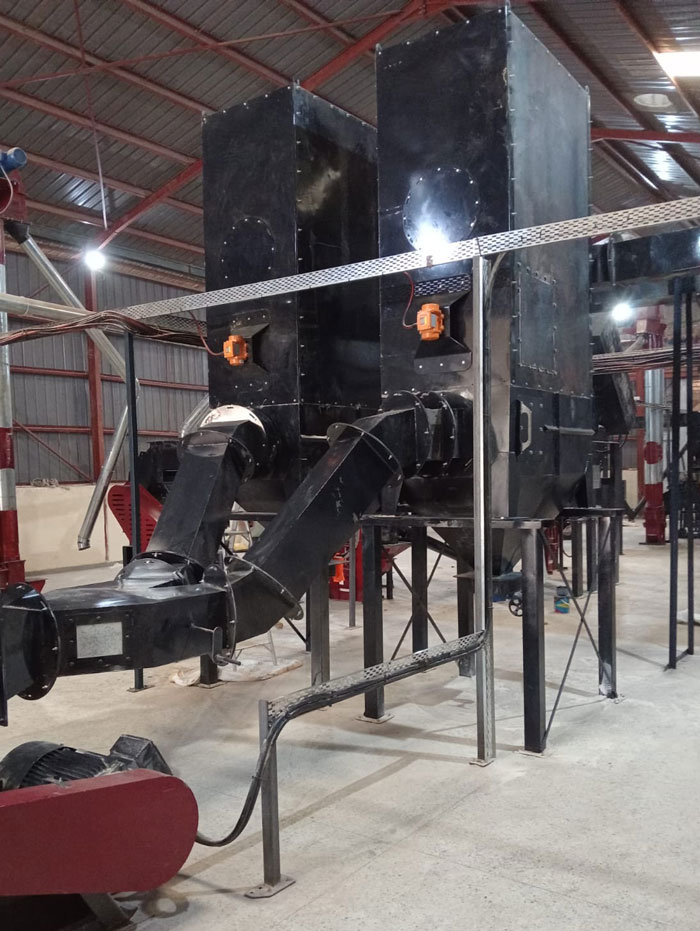

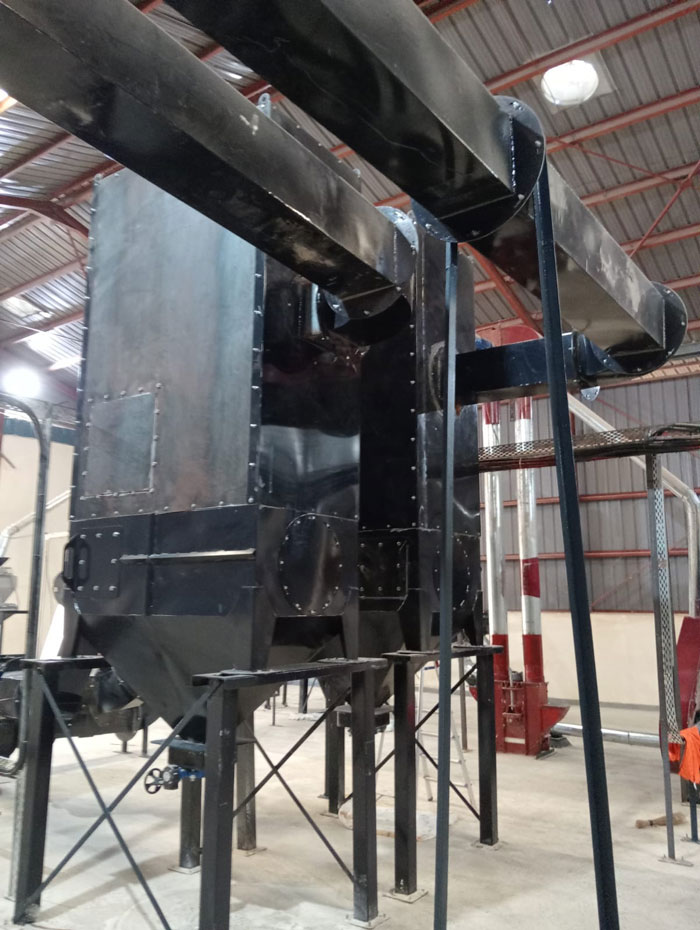

As part of the ABC Hansen air handling products – we have a 32 bag dust manifold – for fitting after our material handling fans.

The dust filter bag manifold is fitted with vibrating motors on timers, that vibrate the dust bags at regular intervals, ensuring that the bags are cleaned an unclogged regularly – ensuring continuous operation of the air transport system.

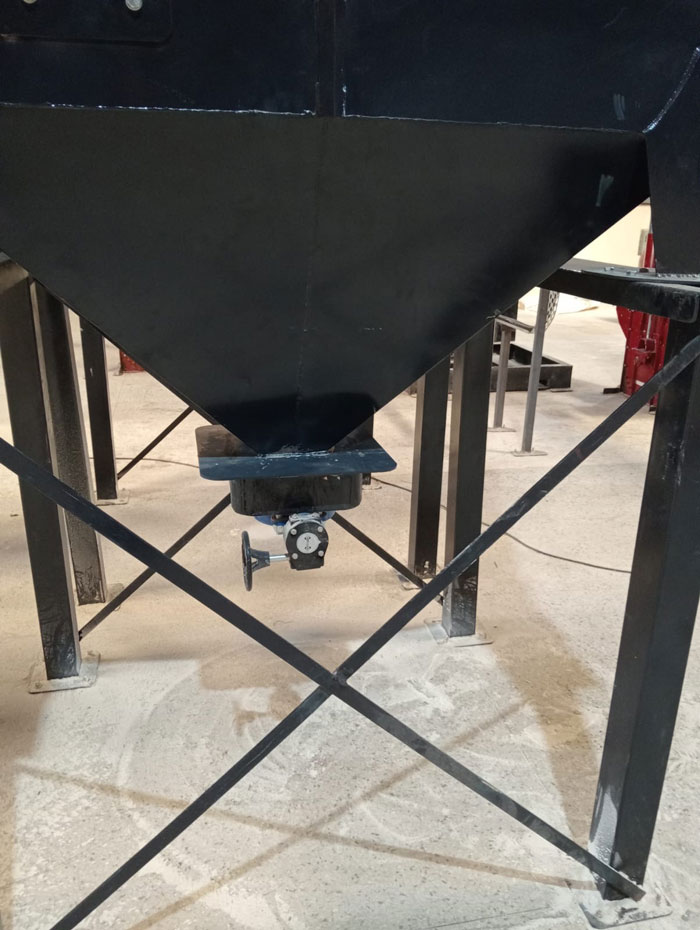

Dust from the dust bags fall down into a hopper bottom area of the dust filter, where they are periodically discharged with a screw conveyor fitted at the bottom of the filter – at a side discharge, to be collected to bags, or transported mechanically for reworking.

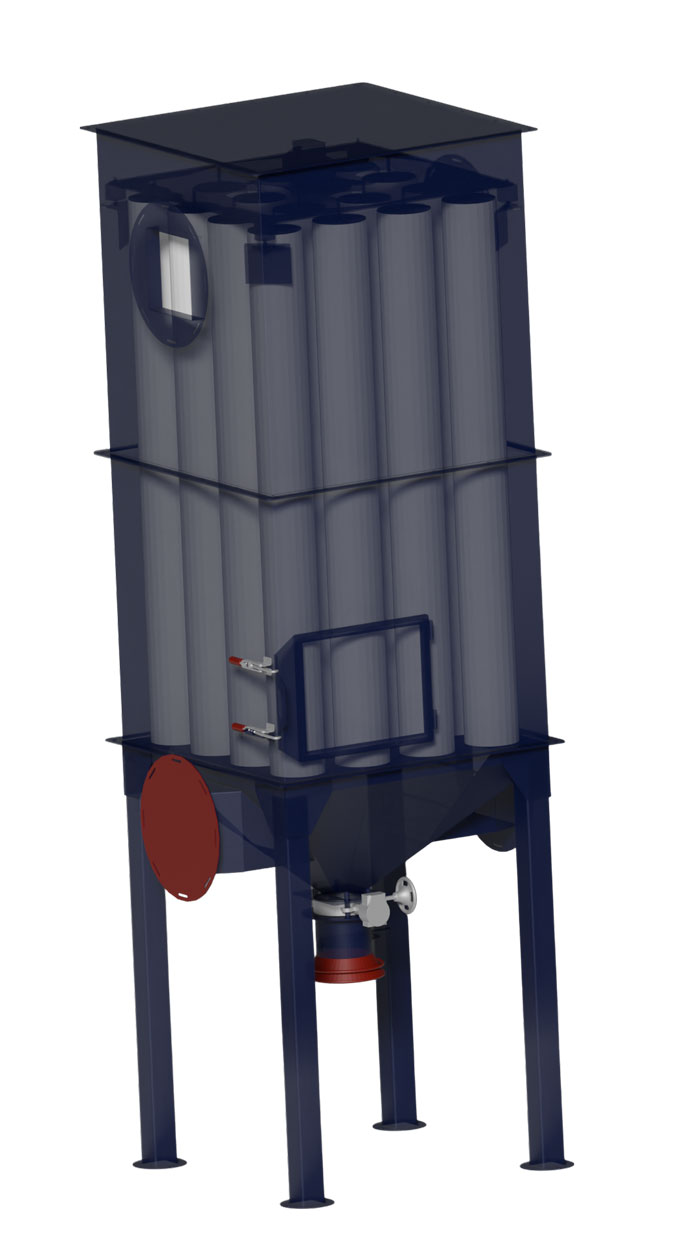

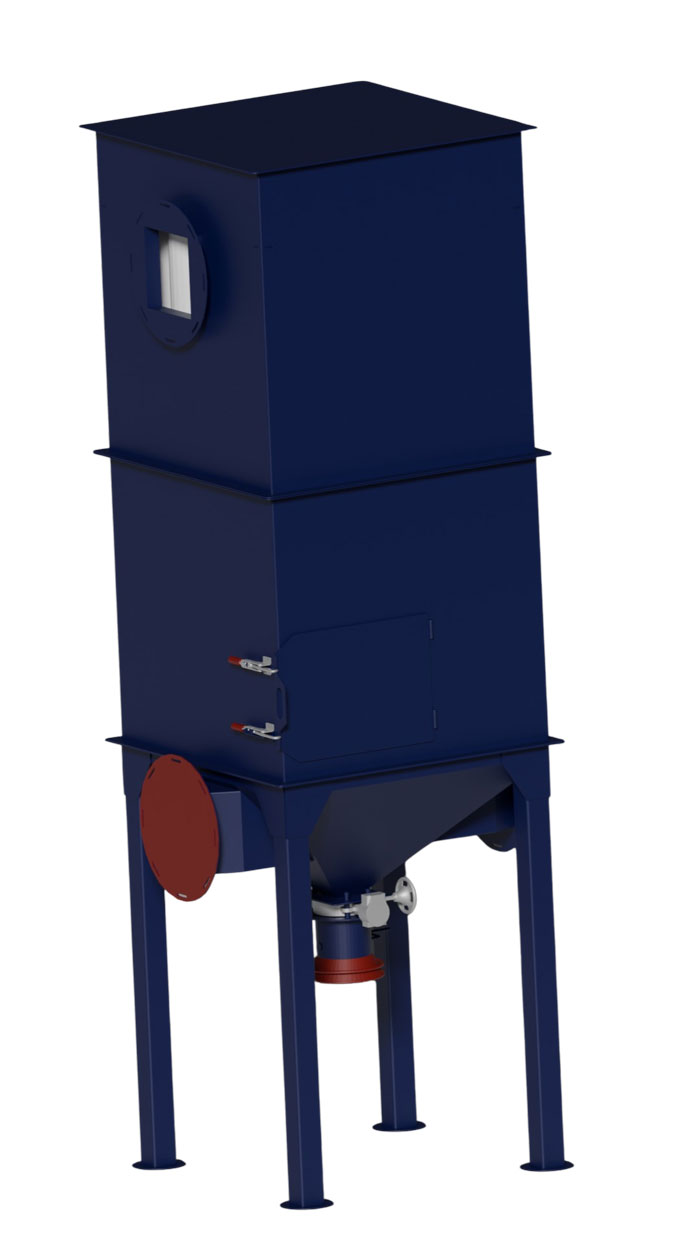

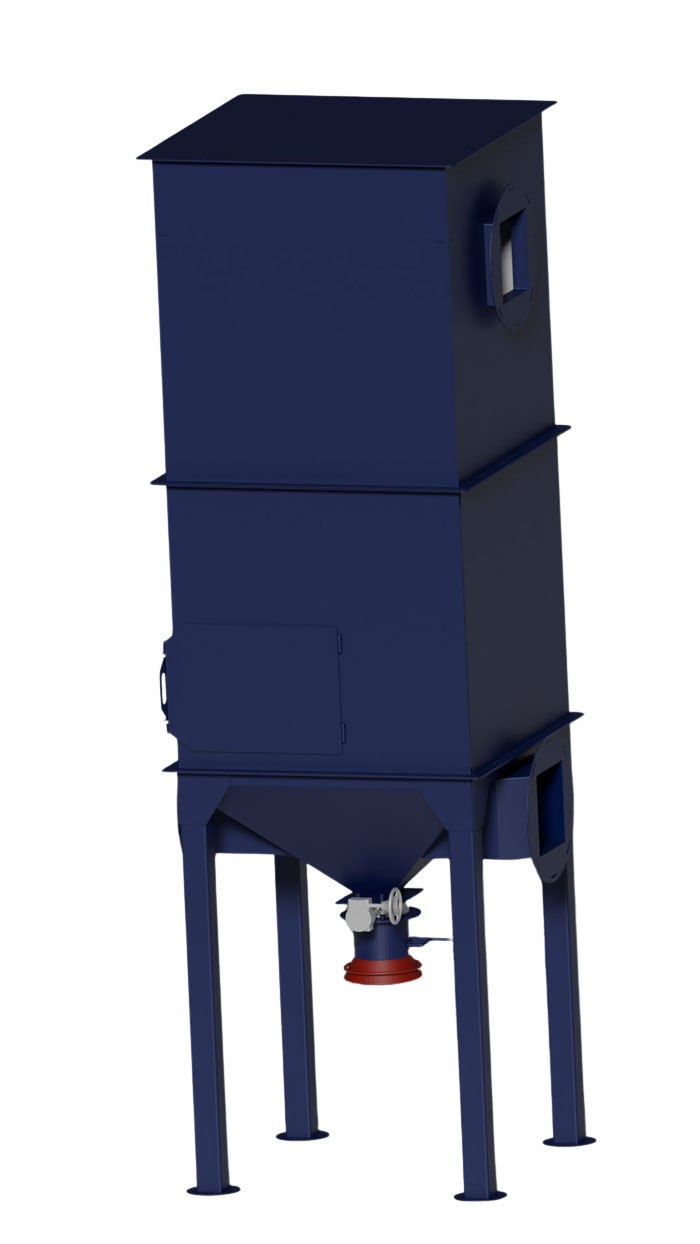

32 Bag Dust Manifold with timed vibrator self cleaning function and dust discharge auger

Fitted standard with 220mm x 1.2m 50-100 micron polyester filter bags.

Total filter area per dust bag: 0.82m²
Total filter area per manifold: 26.5m²
Total volume of filter bags in manifold: 1.46m³

Additional information

Weight 500 kg
Dimensions 200 × 180 × 350 cm
