Description
This page is for the rental of this piece of equipment – and is not the purchase price of the machine. To purchase this machine – click here
The rental rate is per day for the machine, and is subject to terms and conditions.
The retail rate is the base rate per day and excludes:
1. Diesel to be supplied by client for engine
2. Delivery to and collection from the site – the machine must be delivered by ABC Hansen to the site (Charged @ R16.50 ex VAT per km from Pretoria)
3. Excludes a holding deposit on your credit card – equal to 3 days rental.
The rental is subject to the specific terms and conditions of rental – click here to see the Rental Agreements.
Documents to be submitted for rental application:
1. CIPRO documentation for company renting the equipment
2. Identity documents of all directors of the company
3. Proof of residence of the company.
4. Proof of residence of the directors of the company
5. Full address or GPS location of where the goods will be used and/or stored during rental period
6. Signed terms and conditions of rental
7. Signed consent for credit check
8. Copy of the entity’s VAT certificate
Made in SA

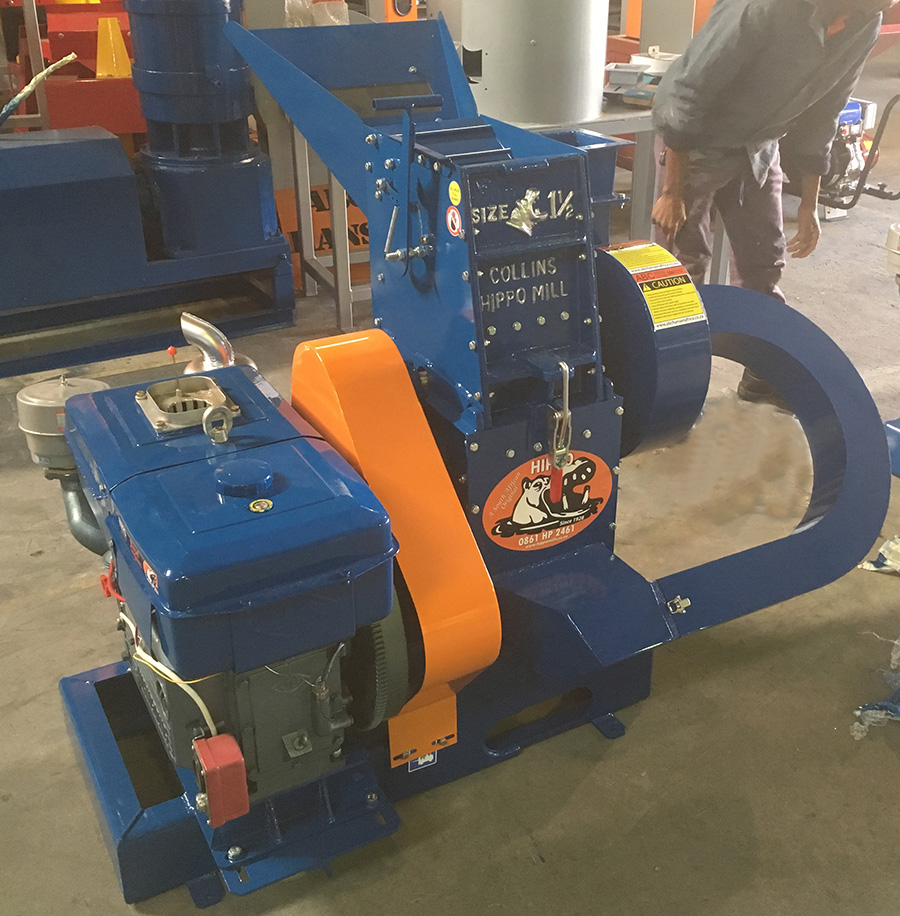

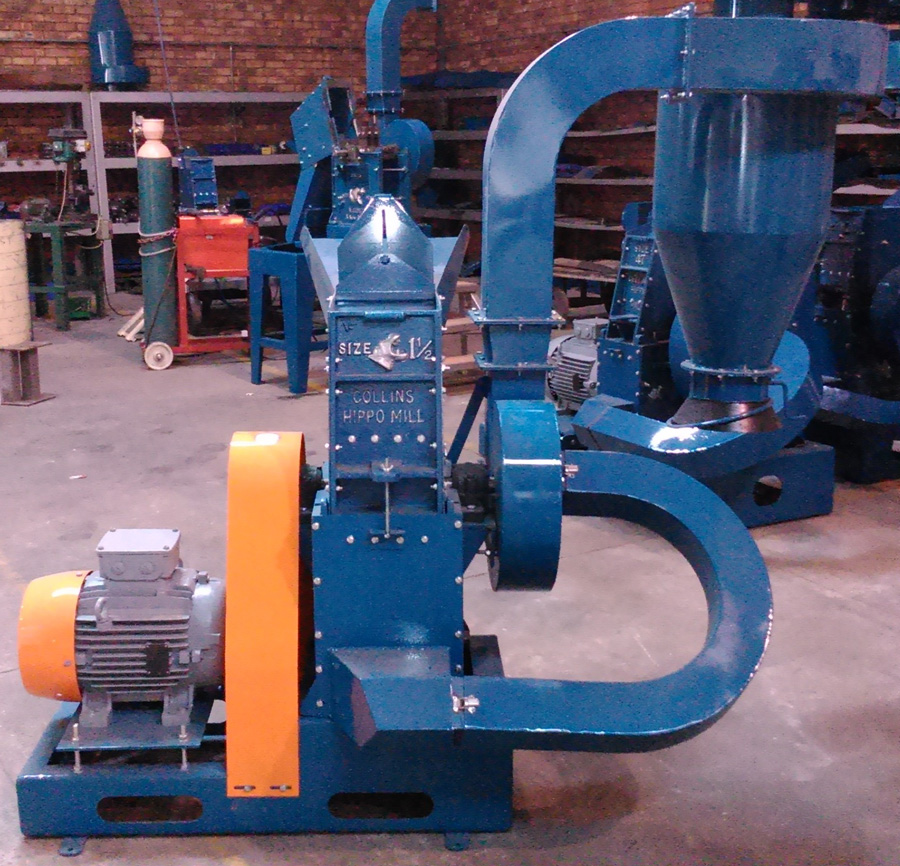

The design of the HIPPO HAMMER MILL is unique in that there are no chopping knives, as the material is being fed directly onto the tips of the rotating hammers in the direction in which the hammers are rotating.
The milled material is transported from the bottom of the mill housing by means of a four bladed cast iron material handling fan mounted on the same shaft as the rotor, and delivered to the cyclone.
Three drive options are available on the Hippo #1.5
– Electric drive – 15KW 380V 50HZ 4 Pole
– 22HP Evaporative cooled JD diesel engine
– PTO Drive

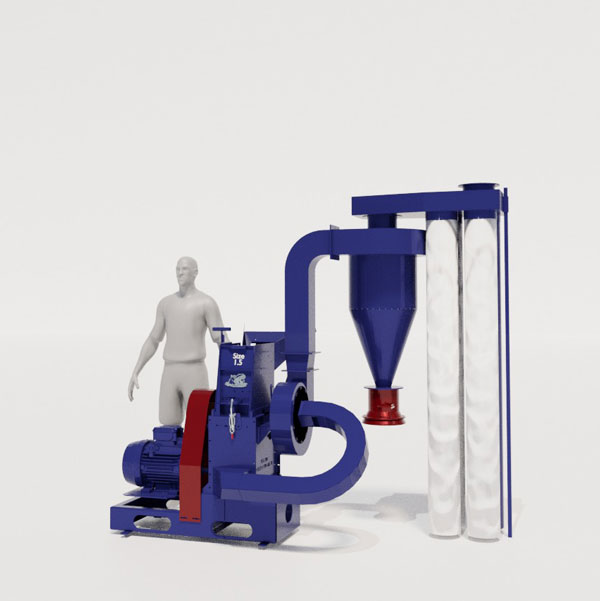

The Hippo #1½ is fitted with an integrated cast iron material handling fan – which pulls milled material from the milling chamber, and the product is then pushed to a cyclone, fitted with a 4 sock dust bank – for almost dust free milling.
Fitted on all Hippo #1½’s as standard is our innovative automatic infeed control system, that regulates the feed into the mill automatically, using the airflow from the material handling fan, to open and close the inlet of the hammer mill, depending on the airflow through the milling chamber (a fuller chamber, allows less airflow, which will then have the inlet move to a closed position preventing overfeeding. Once the milling chamber is emptied and airflow isn’t restricted anymore, the air flow will pull open the inlet again – allowing product to be fed in again – thus ensuring optimal performance from your hammer mill.
Capacities at a glance:
| Screen hole | Capacity (kg/hr) |
| 0.8mm | 600 |
| 1.6mm | 925 |
| 4mm | 1 600 |
| 8mm | 2 500 |
Rotor RPM: 4 550
Inlet size: 165mm x 240mm
Screen area: 1 104cm²
Tip speed at standard RPM: 72m/second
A wide range of screens is available, from 25mm down to 0.6mm aperture. The mills are all a bolt together construction, which gives the mill an exceptionally long lifespan, and make replacing of parts easy and quick.
HIPPO HAMMERMILLS have been manufactured in South Africa since 1928, and parts are readily available from our warehouse, usually within 24 hour from order. HIPPO HAMMERMILLS from models Baby up to Size 69 are based on cast iron milling plates, which drastically increases the lifespan of the mill, compared to competitors which are usually manufactured of sheet metal and welded together.
The Hippo 1.5 is the top model in the agricultural range of mills, with medium capacity and high quality parts. All milling tips are manufactured from Bennox (or optionally Hardox for highly abrasive producst) to ensure long lifetime on these parts.
Hippo Hammer mill Particle Distribution – based on standard full hammer, 100m/s tip speed
.For a technical datasheet on the mill – please click here: MH1.5 – Hippo Size 1.5
