Description

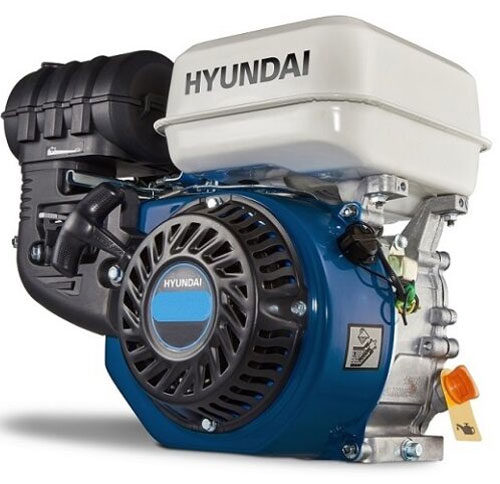

The Hyundai general purpose horizontal shaft engines are built to be tough, reliable and efficient.
The H212 is fitted to ABC Hansen’s Hippo Pygmy Hammer mill – on the petrol drive option – as well as the bench saw and the Hippo Baby.
This engine is has a rated gross output of 6.5 HP and a displacement of 212cc.
Parallel keyed shaft – 19mm
Designed for frequent use in demanding work environments.
Specifications
| Engine Design | Single cylinder, 4-stroke, air-cooled, OHV |
| Starter Type | Recoil Start Only |
| Horse Power | 7 HP |
| Displacement | 127 cc |
| Cylinder | Cast Iron sleeve |
| Bore | 62.0 mm |
| Stroke | 42.0 mm |
| Fuel Tank Capacity | 3.6 Litres |
| Oil Capacity | 0.55 Litres |
| Dry Weight | 16 kg |
| Length | 390mm |
| Width | 320 mm |
| Height | 345 mm |
| PTO Shaft | 19.05 mm x 61.5 mm |
Cartridge Air Cleaner with foam pre-cleaner (dual element) – Provides improved protection against airborne debris entering the engine
Cast Iron Sleeve – Adds integrity and durability that withstand wear and abuse while providing improved oil control.
Mechanical Governor – Controls the engine speed to deliver more usable power under heavy usage.
OHV Technology – Optimized performance that delivers longer engine life and improved fuel economy.
Float Feed Carburetors – Optimized fuel delivery for improved startability and superior performance
.
