Description
This page is for the rental of this piece of equipment – and is not the purchase price of the machine. To purchase this machine – click here
The rental rate is per day for the machine, and is subject to terms and conditions.
The retail rate is the base rate per day and excludes:
1. Tractor and diesel – to be provided by customer
2. Delivery to and collection from the site – the machine must be delivered by ABC Hansen to the site (Charged @ R7.50 ex VAT per km from Pretoria)
3. Excludes a holding deposit on your credit card – equal to 3 days rental.
The rental is subject to the specific terms and conditions of rental – click here to see the Rental Agreement.
Documents to be submitted for rental application:
1. CIPRO documentation for company renting the equipment
2. Identity documents of all directors of the company
3. Proof of residence of the company.
4. Proof of residence of the directors of the company
5. Full address or GPS location of where the goods will be used and/or stored during rental period
6. Signed terms and conditions of rental
7. Signed consent for credit check
8. Copy of the entity’s VAT certificate
Made in SA

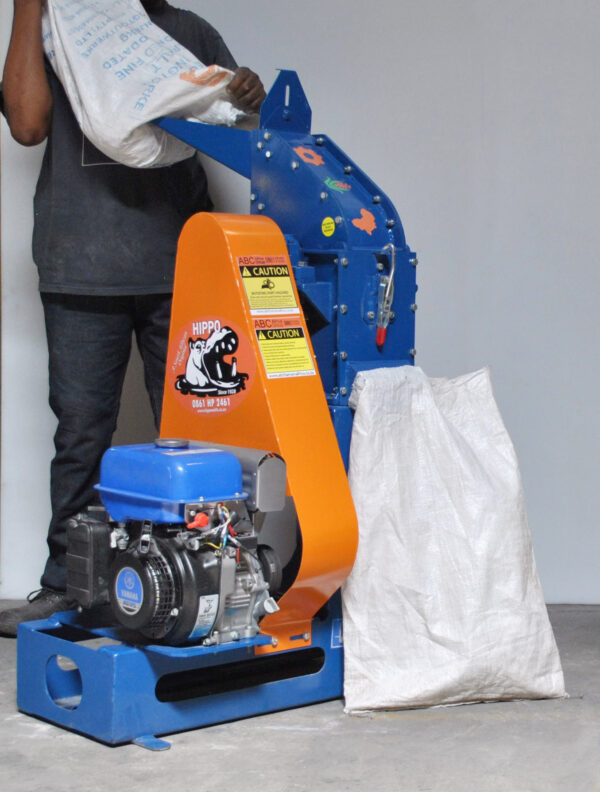

This is the second of the range (The Pygmy is smaller, and the Size 1 is one model up) and is popular for home and small industries. They are used mainly in the Spice, Herbs & Maize Milling . They are also used in Industry for milling light industrial products such as Foam, Plastics and Recycling.
There are two configurations available on the Hippo Baby.

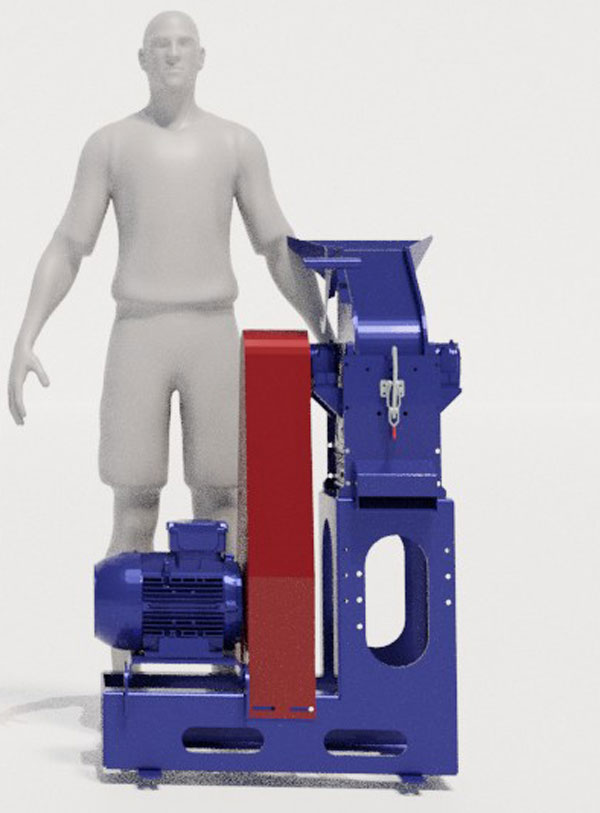

A) Front drop configuration: The hammer mills is as a standard hammer mill – and only has a bag off attachment at the front of the mill at approximately 750mm height, thus product is milled through the hammer mill, and is directly discharged from the front of the mill to a bag. This option has no dust control. The performance and capacity of the mill stays the same. The front drop option is available on all drive options.
B) With Fan configuration: The hammer is fitted with an integrated material handling fan – as with the Size 1 to Size 69 mills – where product is sucked from the milling chamber, and pushed to a cyclone, fitted with a dust sock – nearly dust free milling. The with fan configuration is available in all drive models, except for the 2.2KW single phase units.
With fan units – are fitted standard with our innovative automatic infeed control system, that regulates the feed into the mill automatically, using the airflow from the material handling fan, to open and close the inlet of the hammer mill, depending on the airflow through the milling chamber (a fuller chamber, allows less airflow, which will then have the inlet move to a closed position preventing overfeeding. Once the milling chamber is emptied and airflow isn’t restricted anymore, the air flow will pull open the inlet again – allowing product to be fed in again – thus ensuring optimal performance from your hammer mill.
For rental the 2.2KW single phase unit is offered
– Single phase 2.2KW electric (only on front drop model)
Specifications at a glance:
| Screen hole size | Capacity (kg/hr) |
| 0.8mm | 100 |
| 1.6mm | 200 |
| 4mm | 400 |
| 8mm | 700 |
Rotor RPM: 5,100
Inlet size: 100mm x 140mm
Screen area: 640cm²
Tip speed at standard RPM: 63m/second
ABC Hansen only fits high quality FAG Bearings on our mills – due to the high speed that our mills run, and due to the high pressures
The design of the Baby HIPPO HAMMER MILL is unique in that there are no chopping knives, as the material is being fed directly onto the tips of the rotating hammers in the direction in which the hammers are rotating. The milled material is gravity fed out the front of the mill at a convenient bag off height of 850mm on the front drop models, and at a height of 850mm from the cyclone on the with fan models.
A wide range of screens is available, from 25mm down to 0.6mm aperture to be able to produce nearly any particle size required.
The mills are all a bolt together construction, which gives the mill an exceptionally long lifespan, and make replacing of parts and repairs easy and quick.
HIPPO HAMMERMILLS have been manufactured in South Africa since 1928, and parts are readily available from our warehouse, usually within 24 hours or less from order.
HIPPO HAMMERMILLS from models Baby up to Size 69 are based on cast iron milling plates, which drastically increases the lifespan of the mill, compared to competitors. The Hippo Baby is a part of the entry level model range, together with the Hippo Pygmy, for mid range capacity, but without giving up the exceptional quality and lifespan synonymous with Hippo Hammer Mills.
All milling tips are manufactured from Bennox steel to ensure long lifetime on these parts and optional Hardox can be ordered separately for exceptionally abrasive materials.
For a technical datasheet – please click here: MH-B – Hippo Baby
Hippo Hammer mill Particle Distribution – based on standard full hammer, 100m/s tip speed
